Case Materials, Sizes & Colors
ABS (Acrylonitrile Butadiene Styrene)
Known for its impact resistance and durability.
Dial Sizes
Part No: (abCdefgghij-k)
2.5 Inch | Code: (3)
3.5 Inch | Code: (2)
4.5 Inch | Code: (1)
6 Inch | Code: (0)
8.5 Inch | Code: (8)
Case Colors
Part No: (abcdefggHij-k)
Black | Code: (A)
Blue | Code: (B)
Green | Code: (G)
Red | Code: (R)
White | Code: (W)
Yellow | Code: (Y)
Operating Temperature
Media: -65°F/ -54°C to 250°F/ 121ºC
Ambient: -65°F/ -54°C to 190°F/ 88ºC
Case Types
Part No: (abcDefgghij-k)

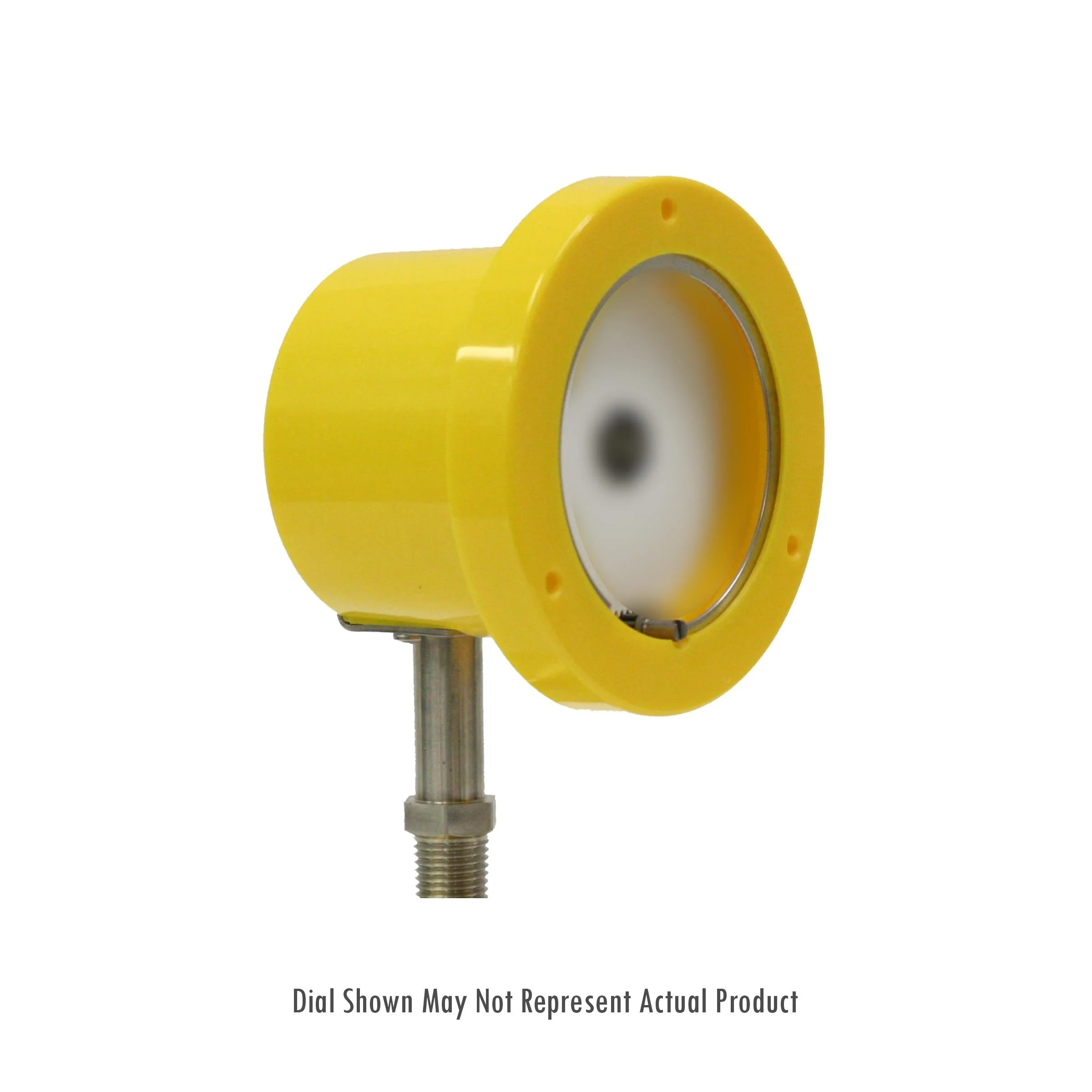

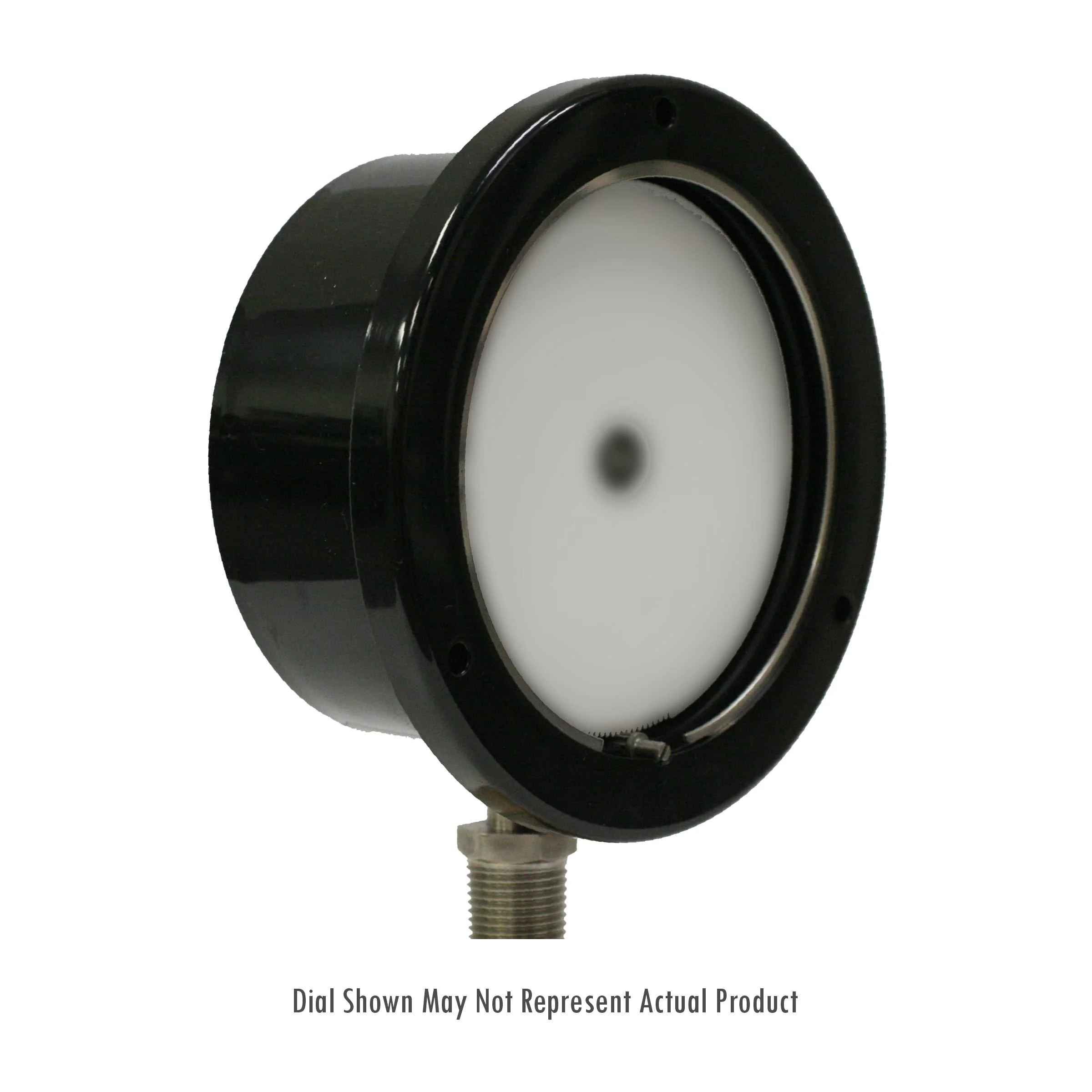

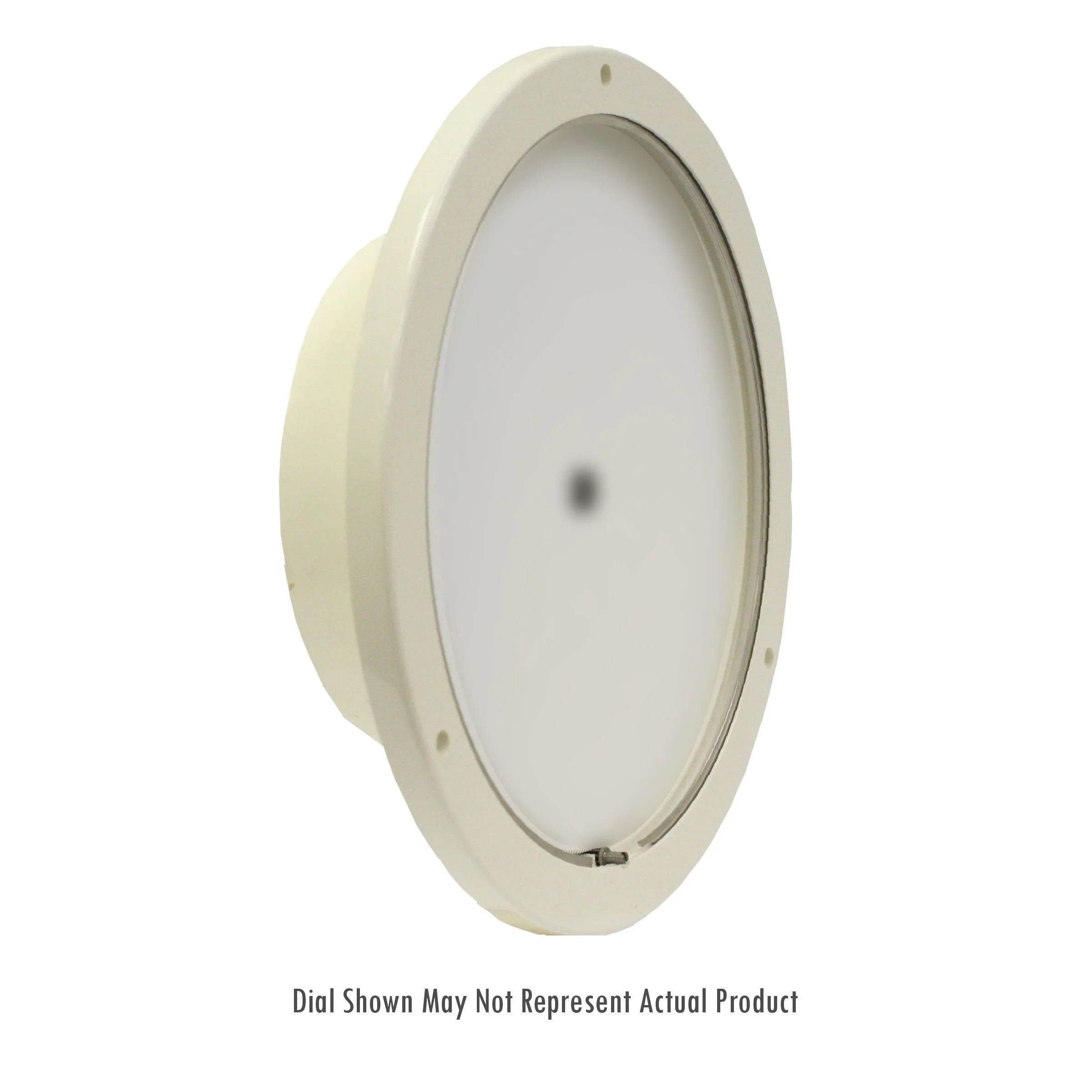

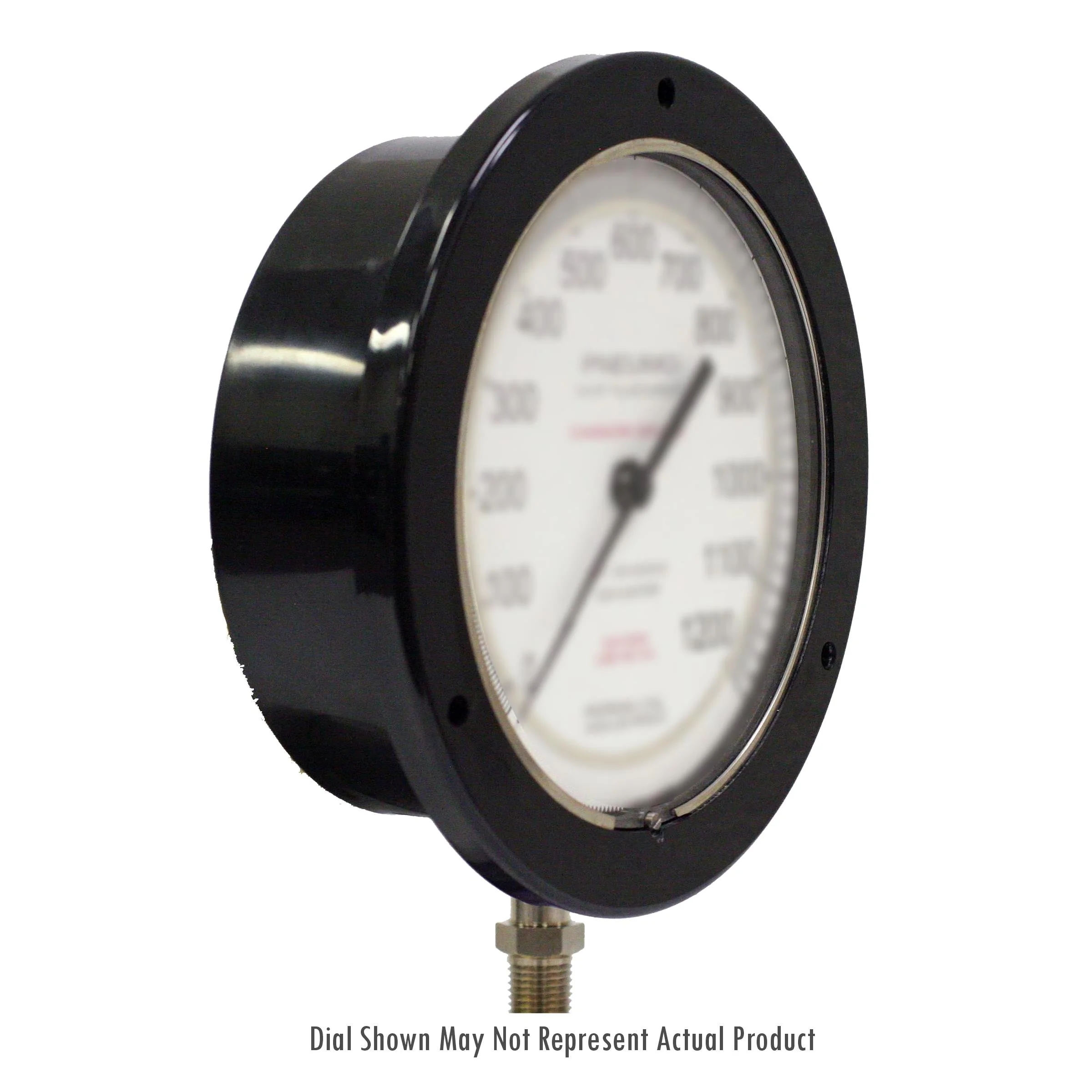

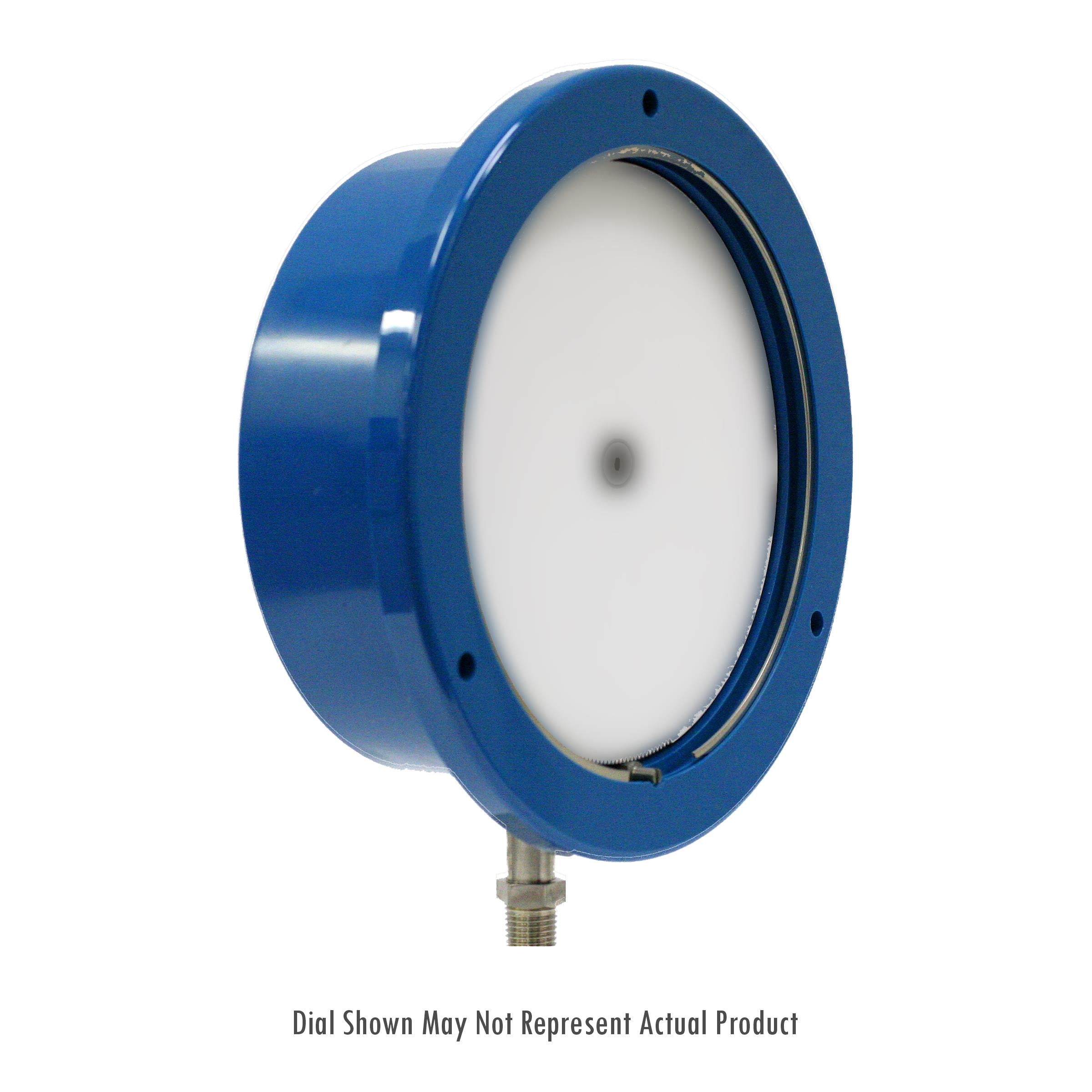

Front Flange
Code: (F)

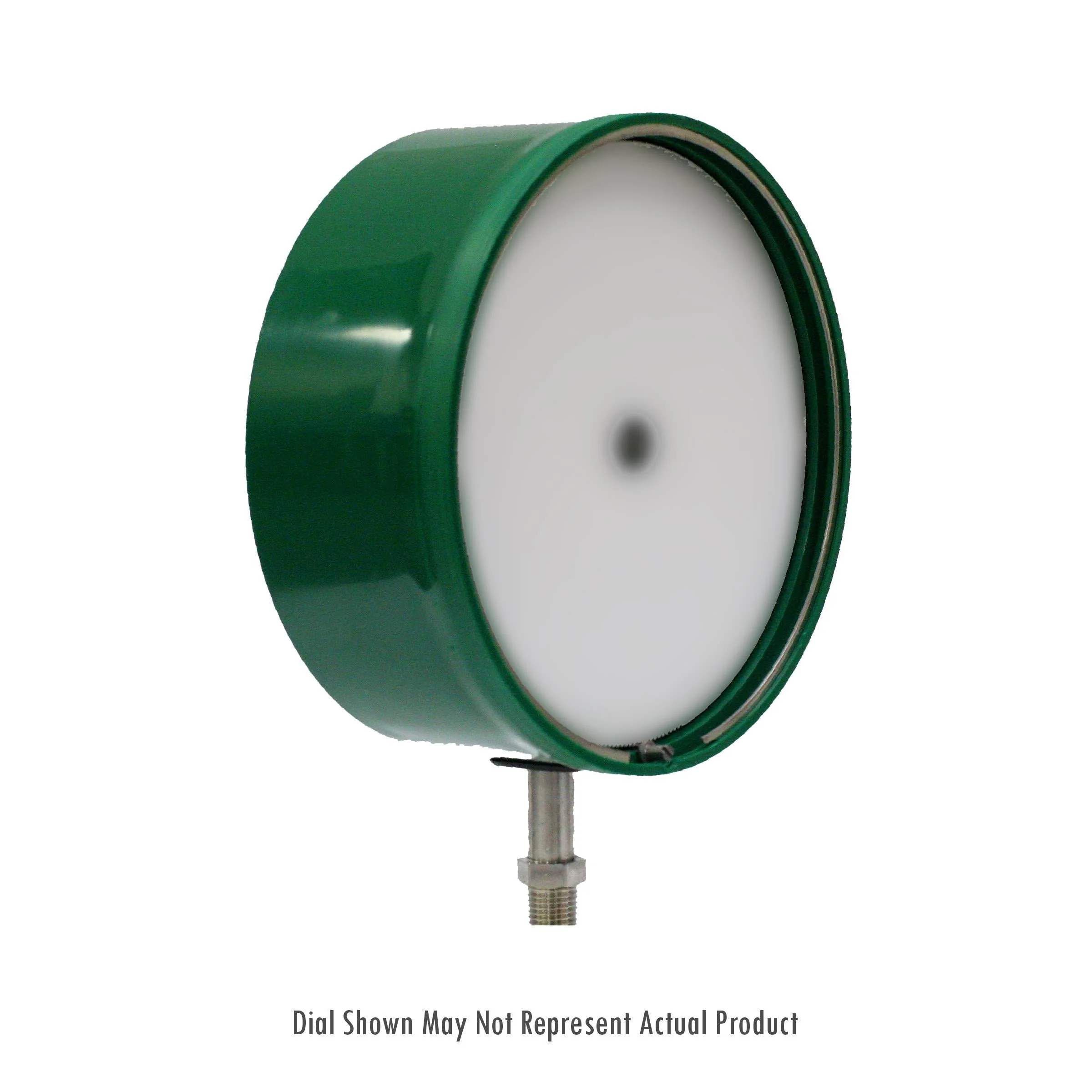

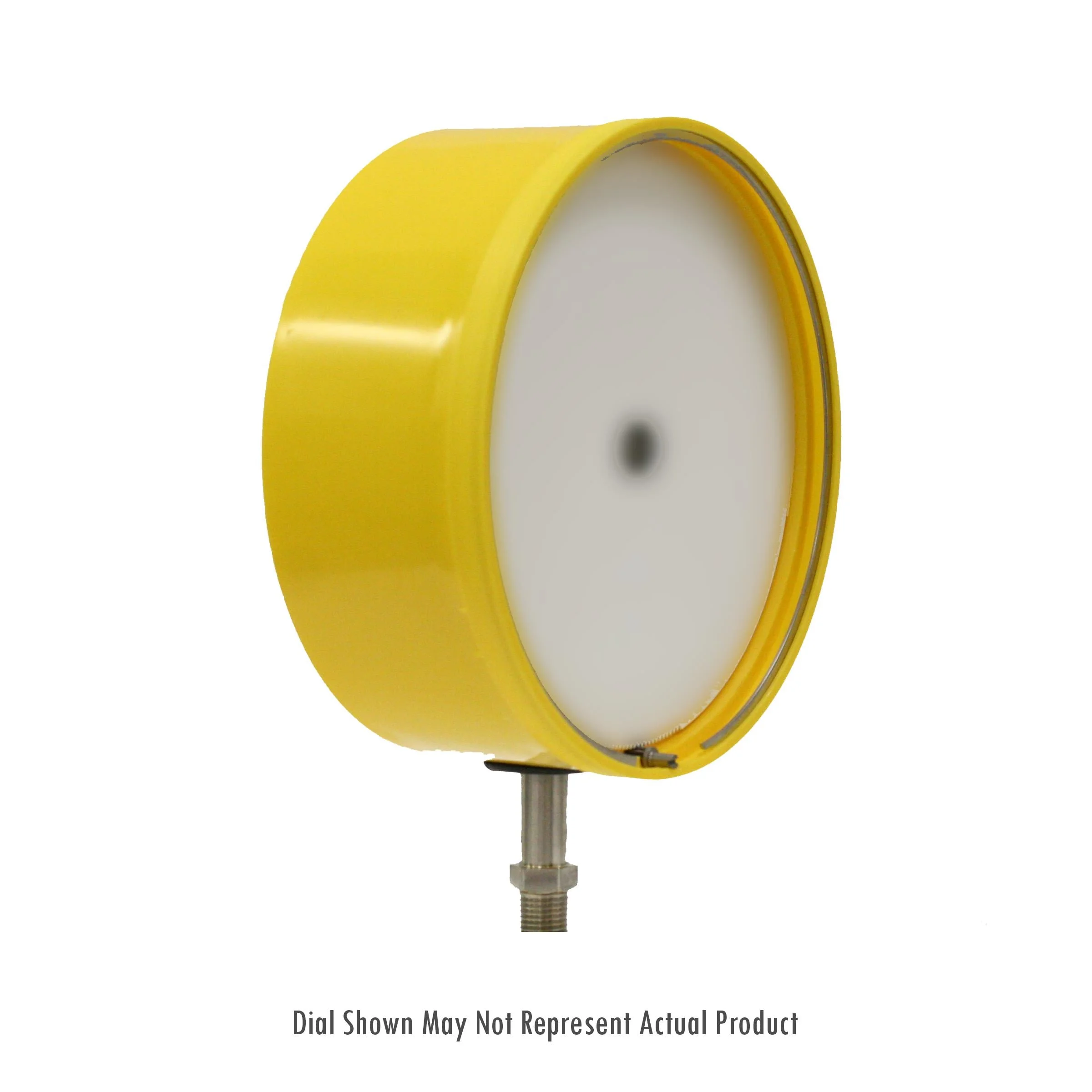

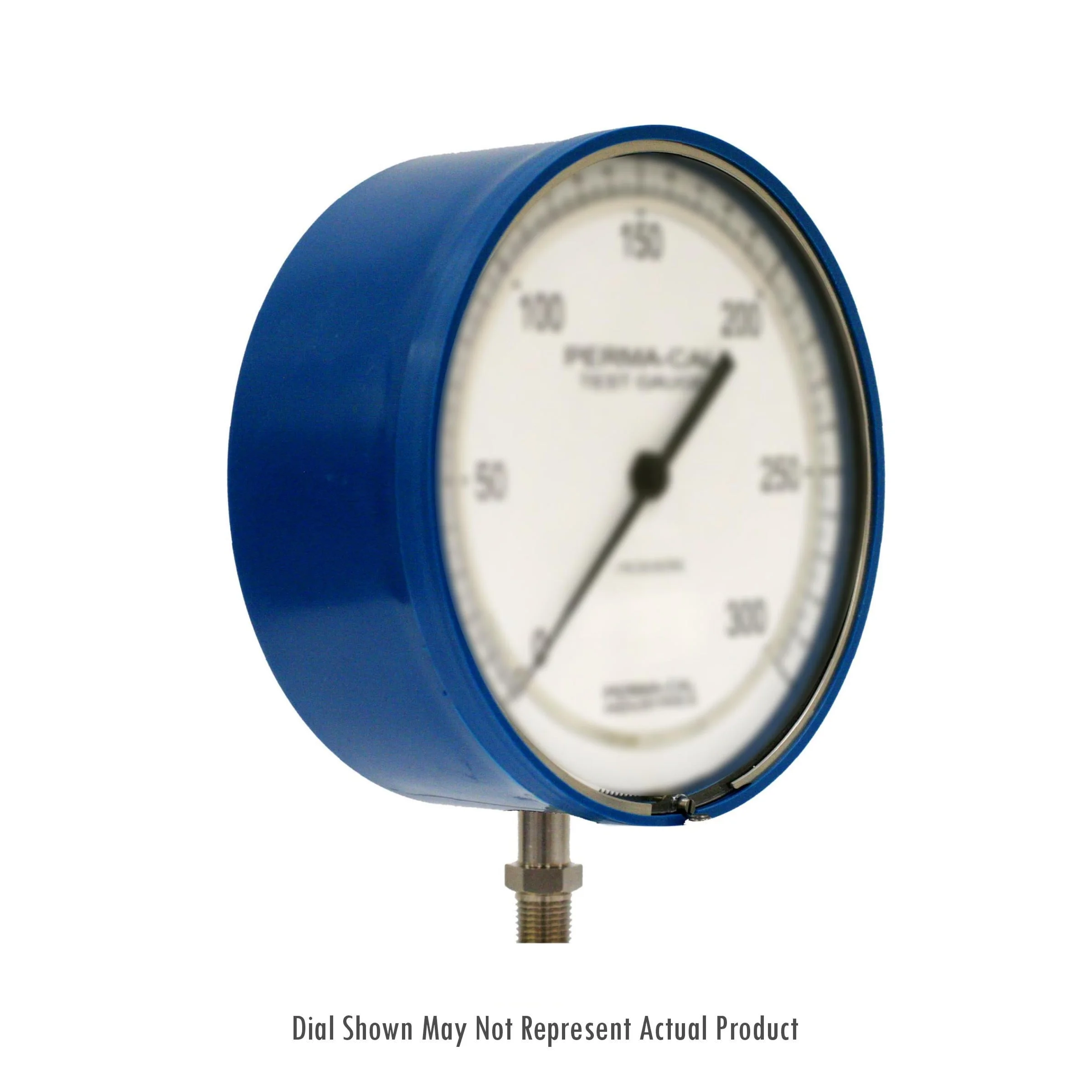

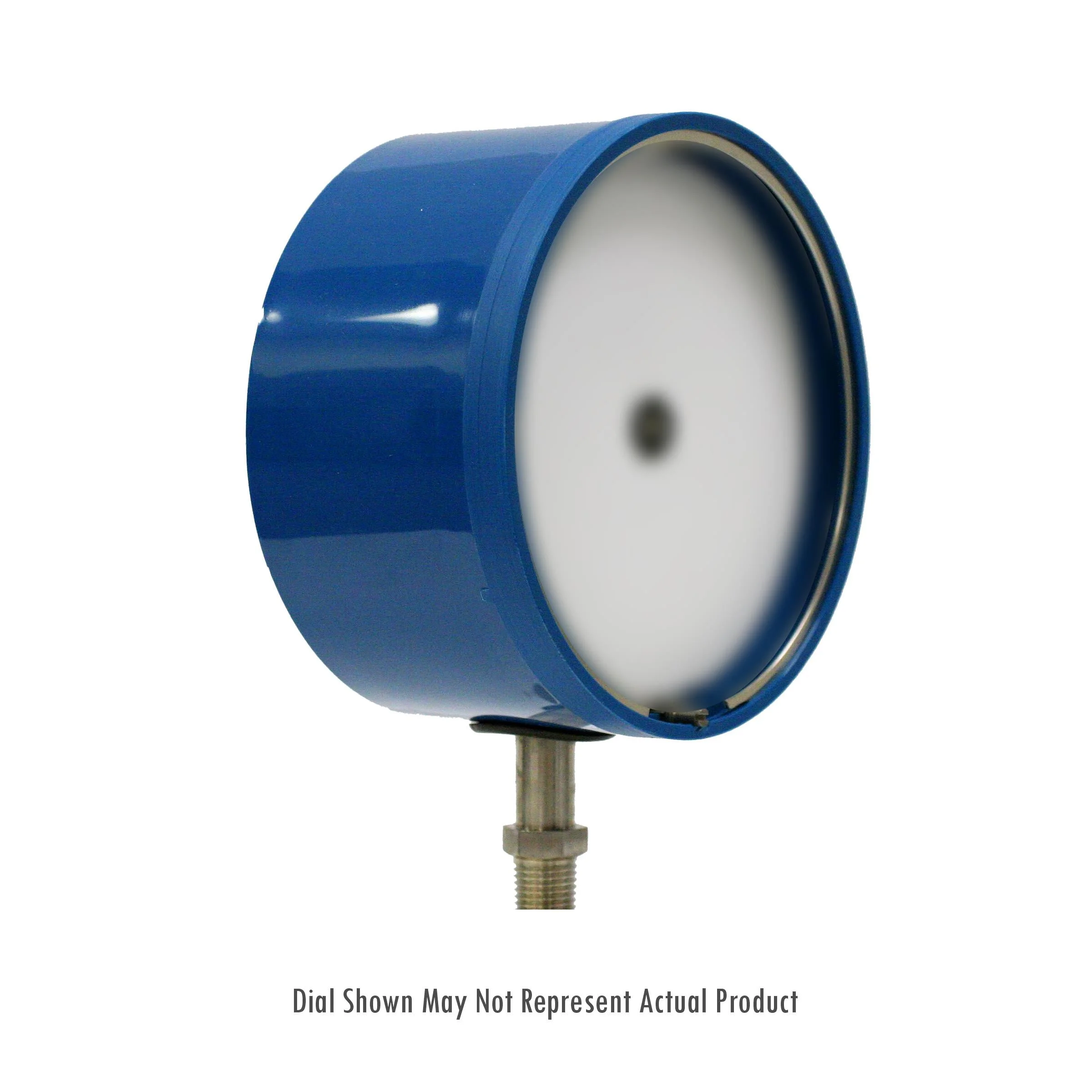

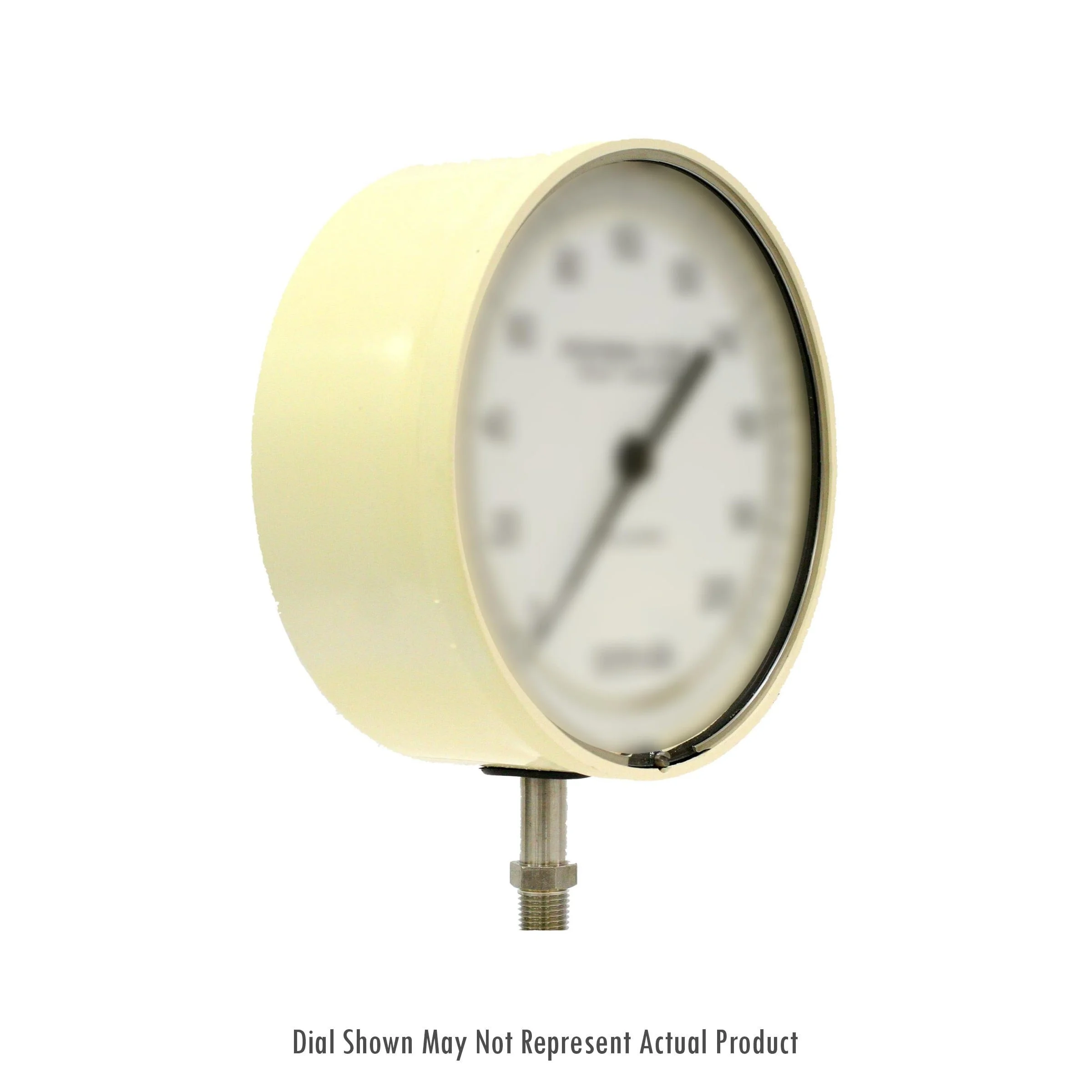

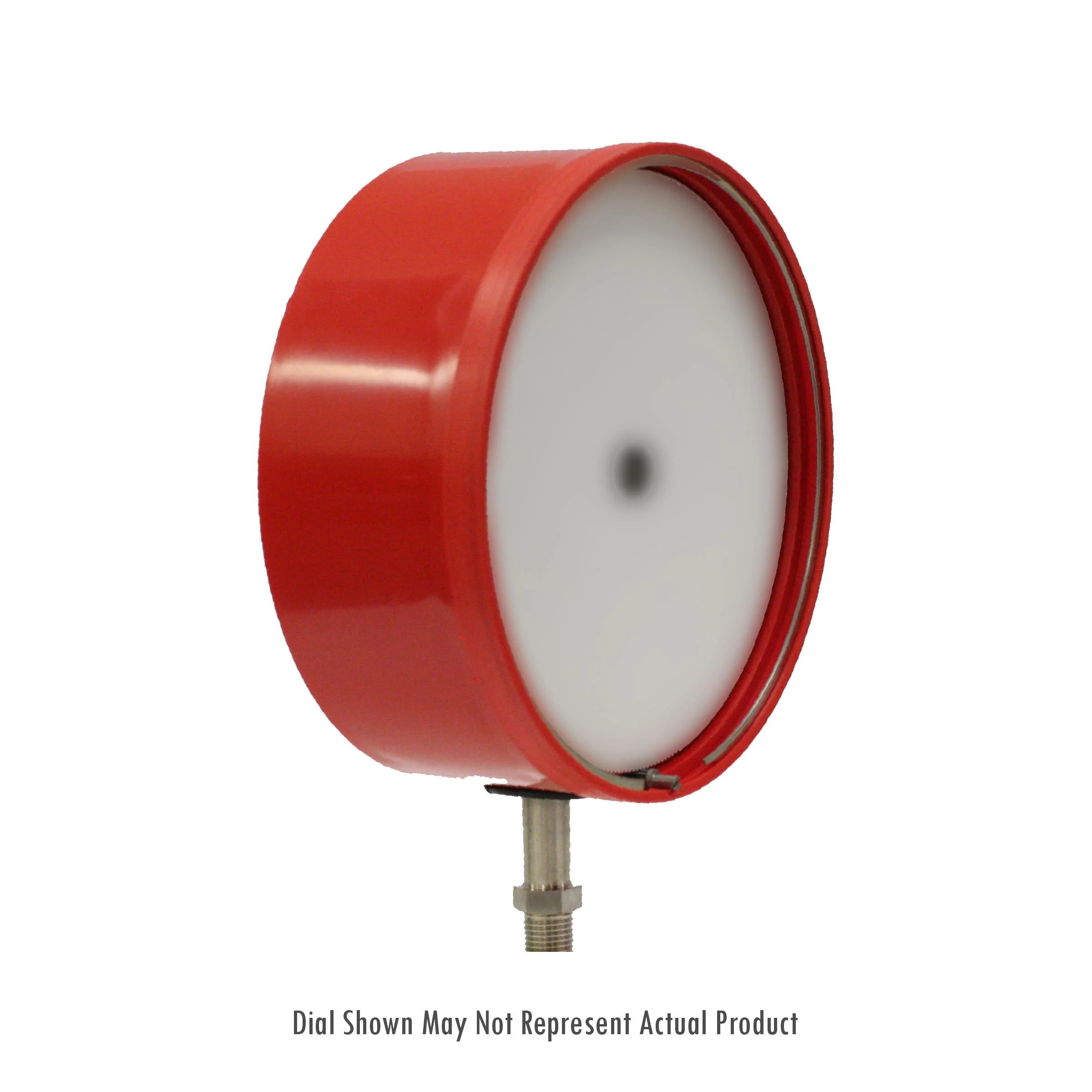

No Flange
Code: (N)

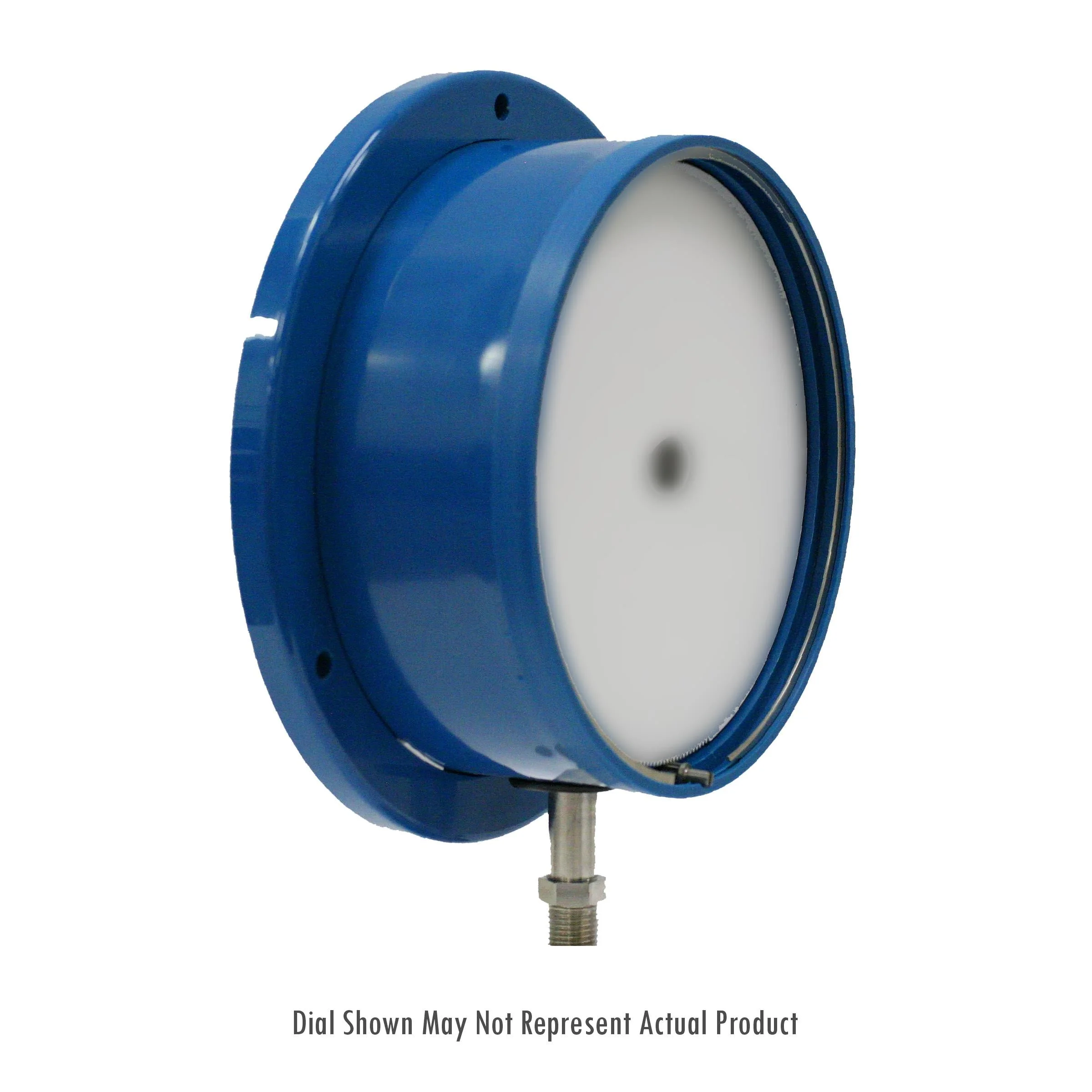

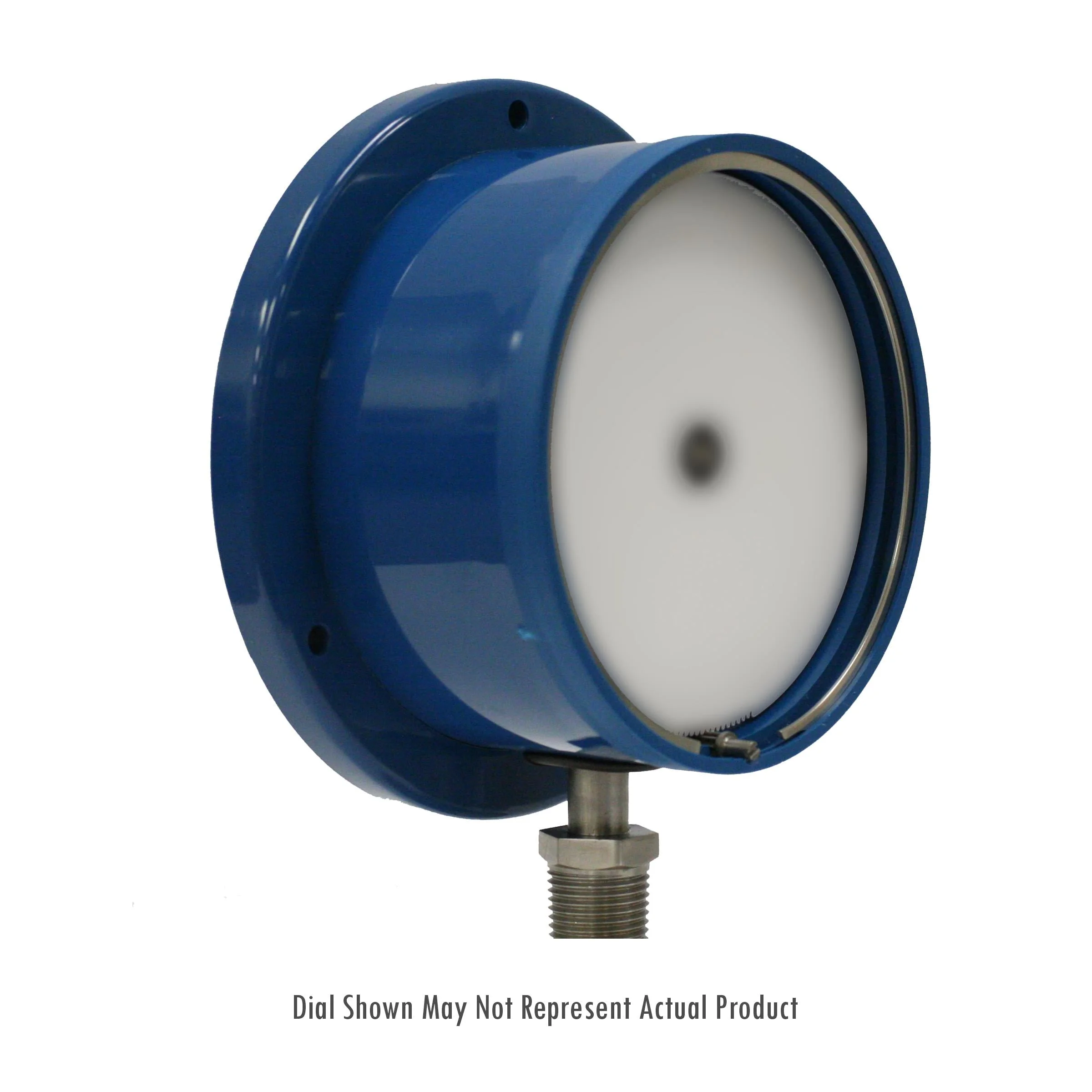

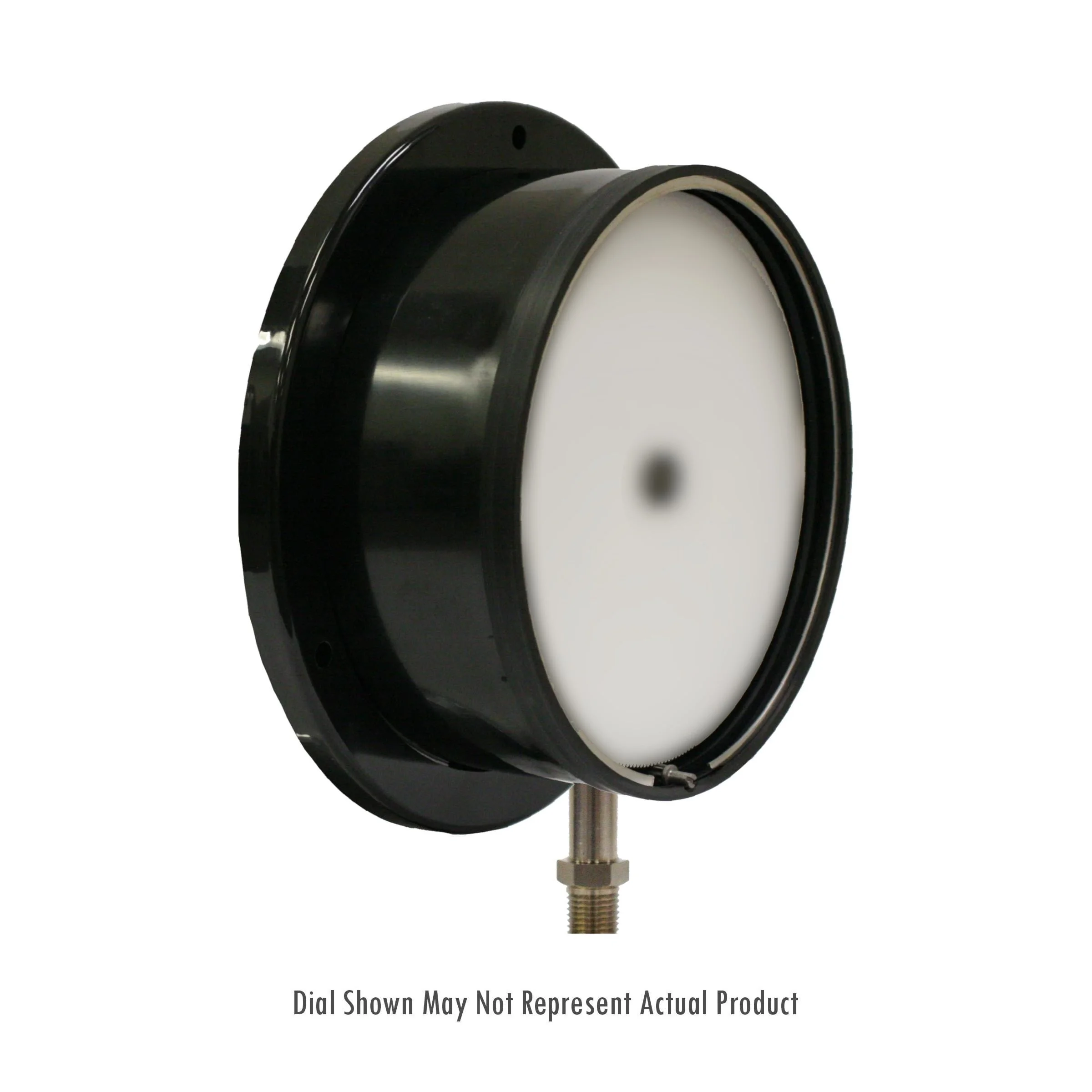

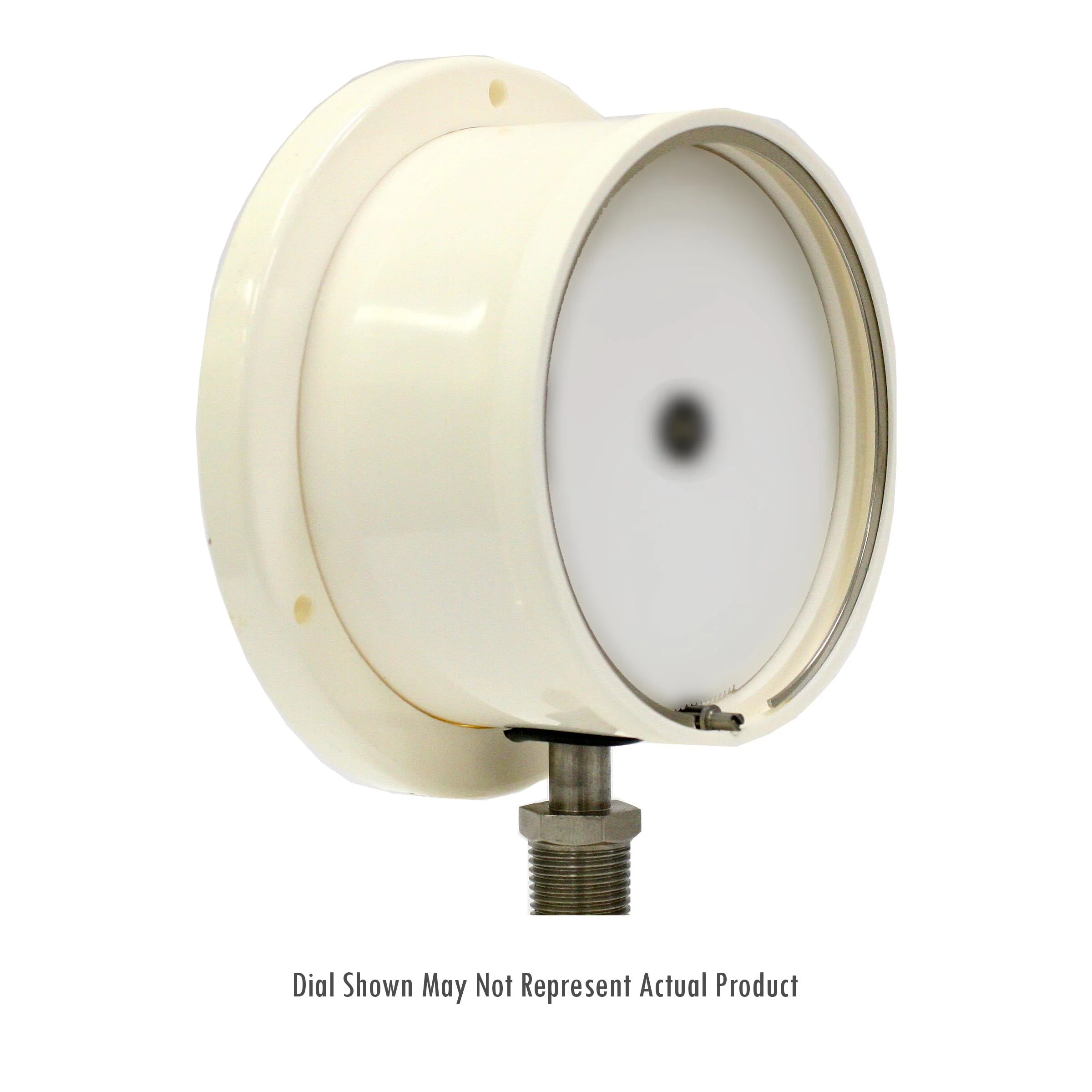

Rear Flange
Code: (R)

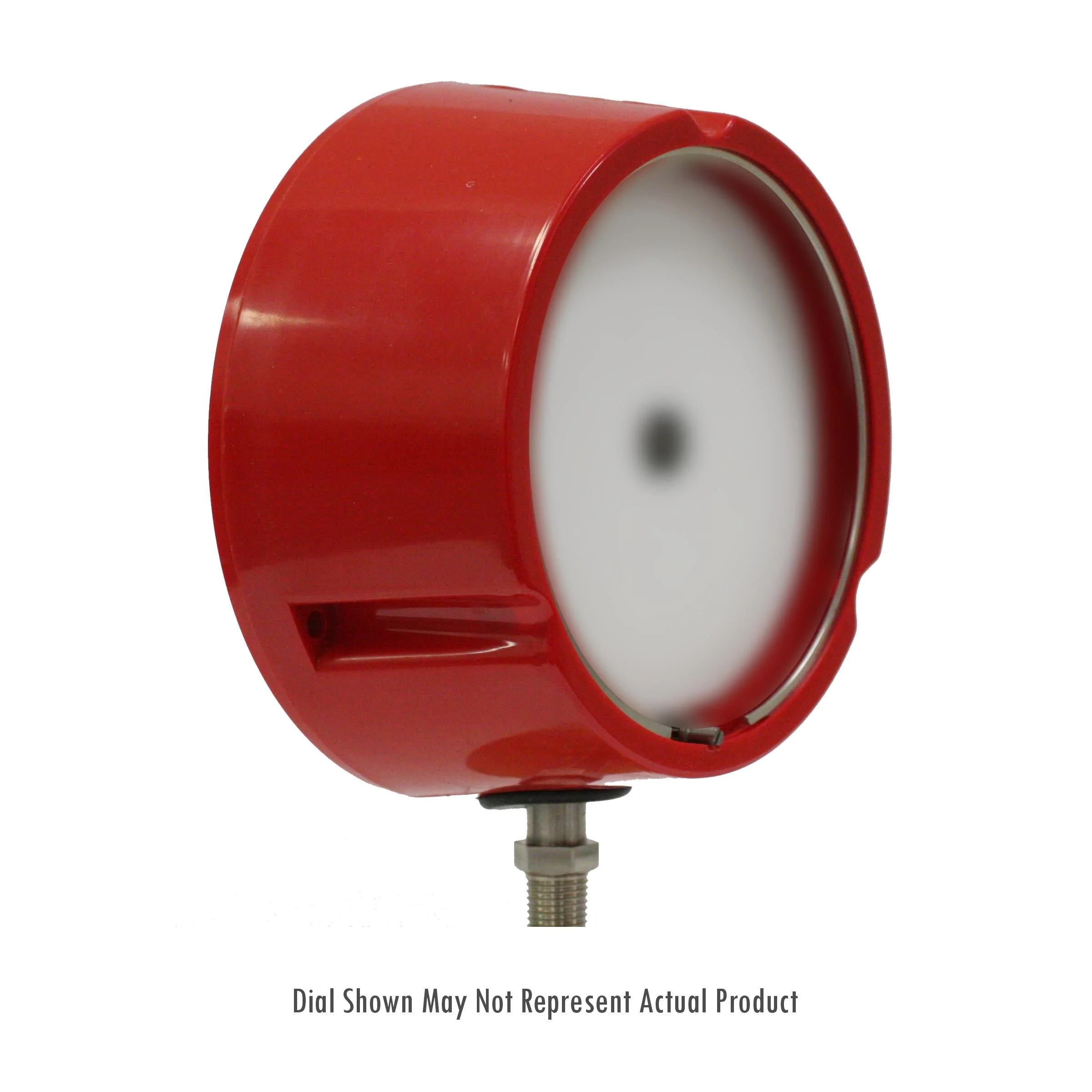

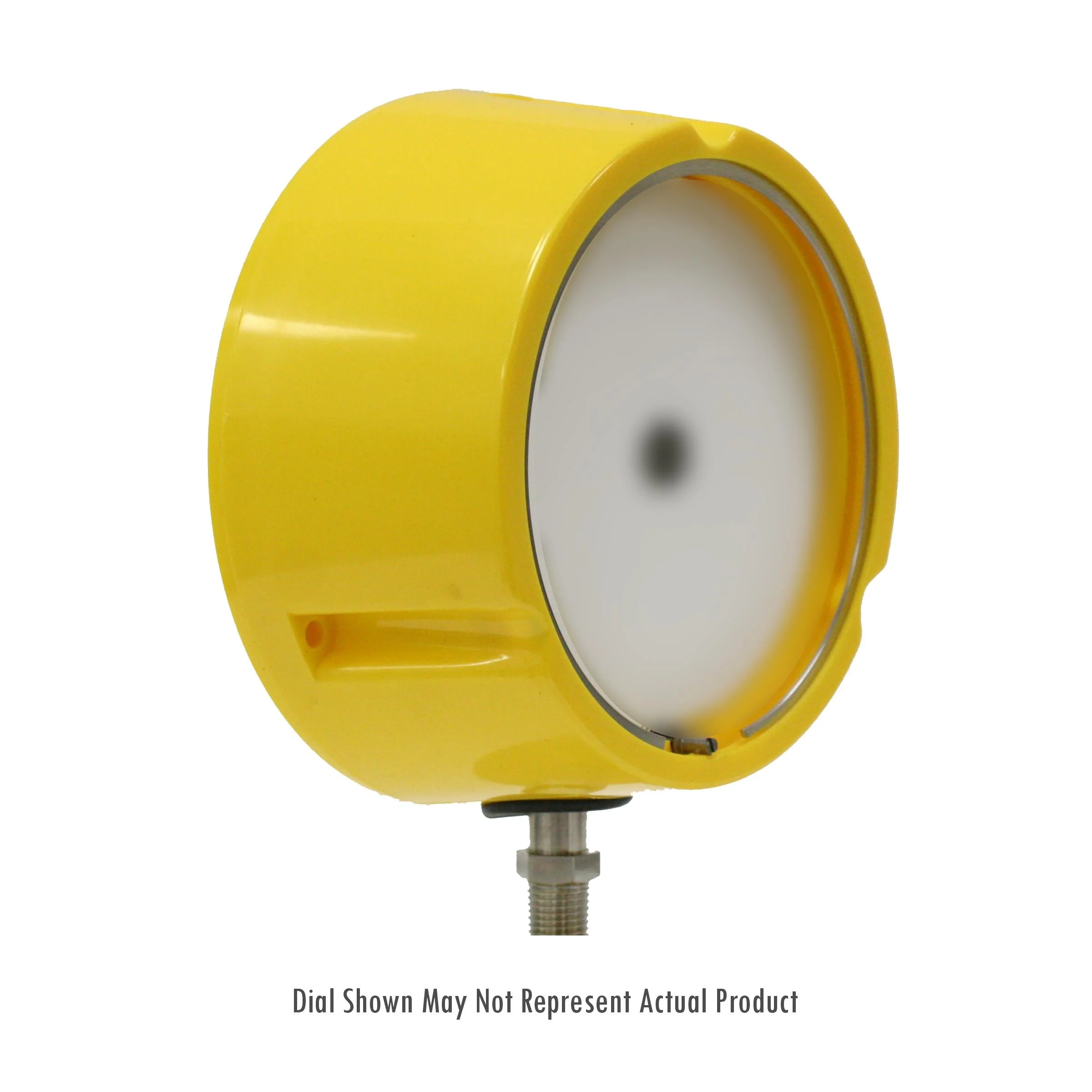

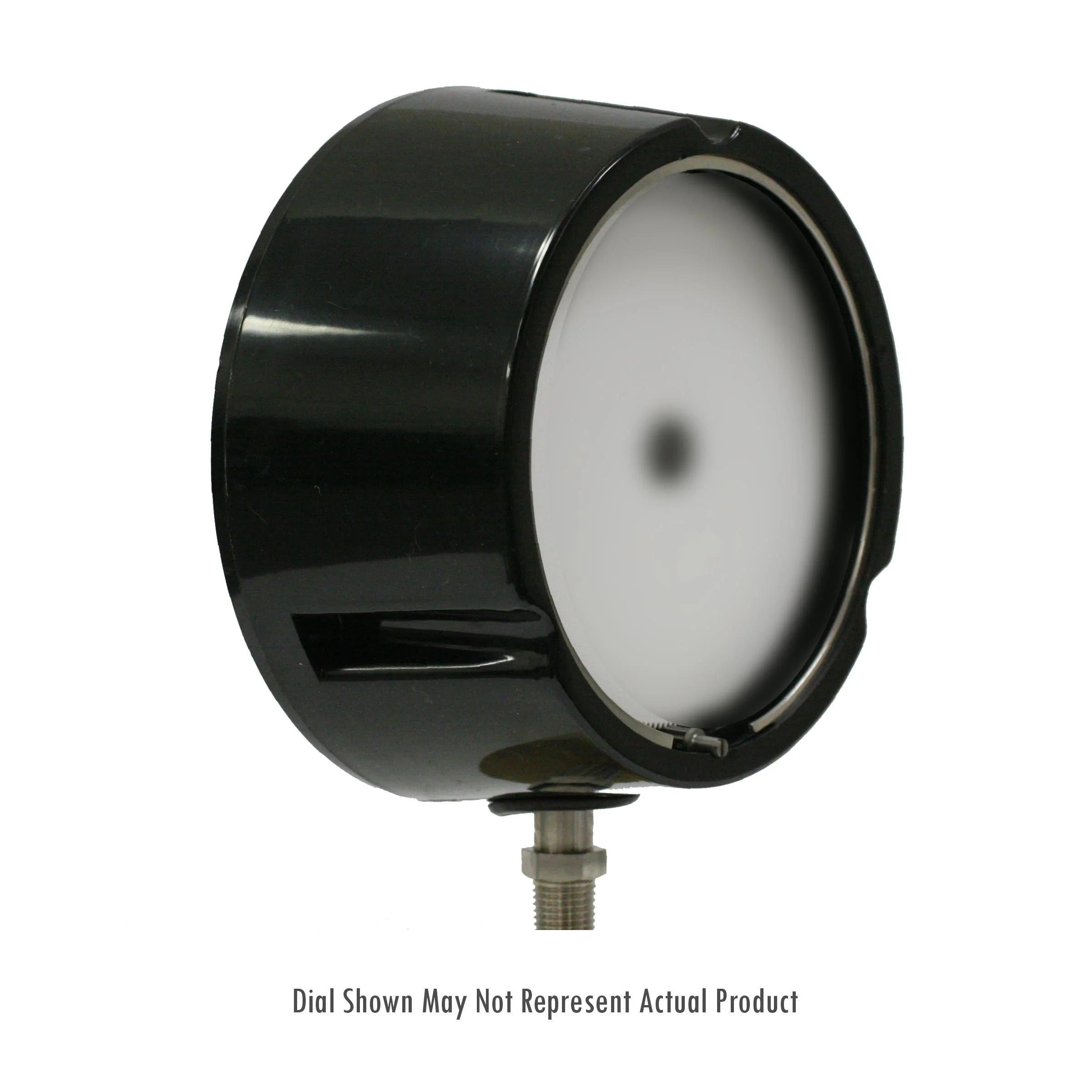

Turret
Code: (T)
ALUMINUM AND STAINLESS STEEL
Offering extreme durability. Also, well suited for high temperature applications.
Dial Sizes
Part No: (abCdefgghij-k)
2.5 Inch | Code: (3)
3.5 Inch | Code: (2)
4.5 Inch | Code: (1)
8.5 Inch | Code: (8)
Case Colors
Part No: (abcdefggHij-k)
Unpainted | Code: (U)
Skydrol Purple | Code: (S)
Powder Coated Finish | Code: (see ABS colors above for other codes)
Unique colors available upon request.
Operating Temperature
Media: -65°F/ -54°C to 600°F/ 315ºC
Ambient: -65°F/ -54°C to 400°F/ 204ºC
Case Types
Part No: (abcDefgghij-k)

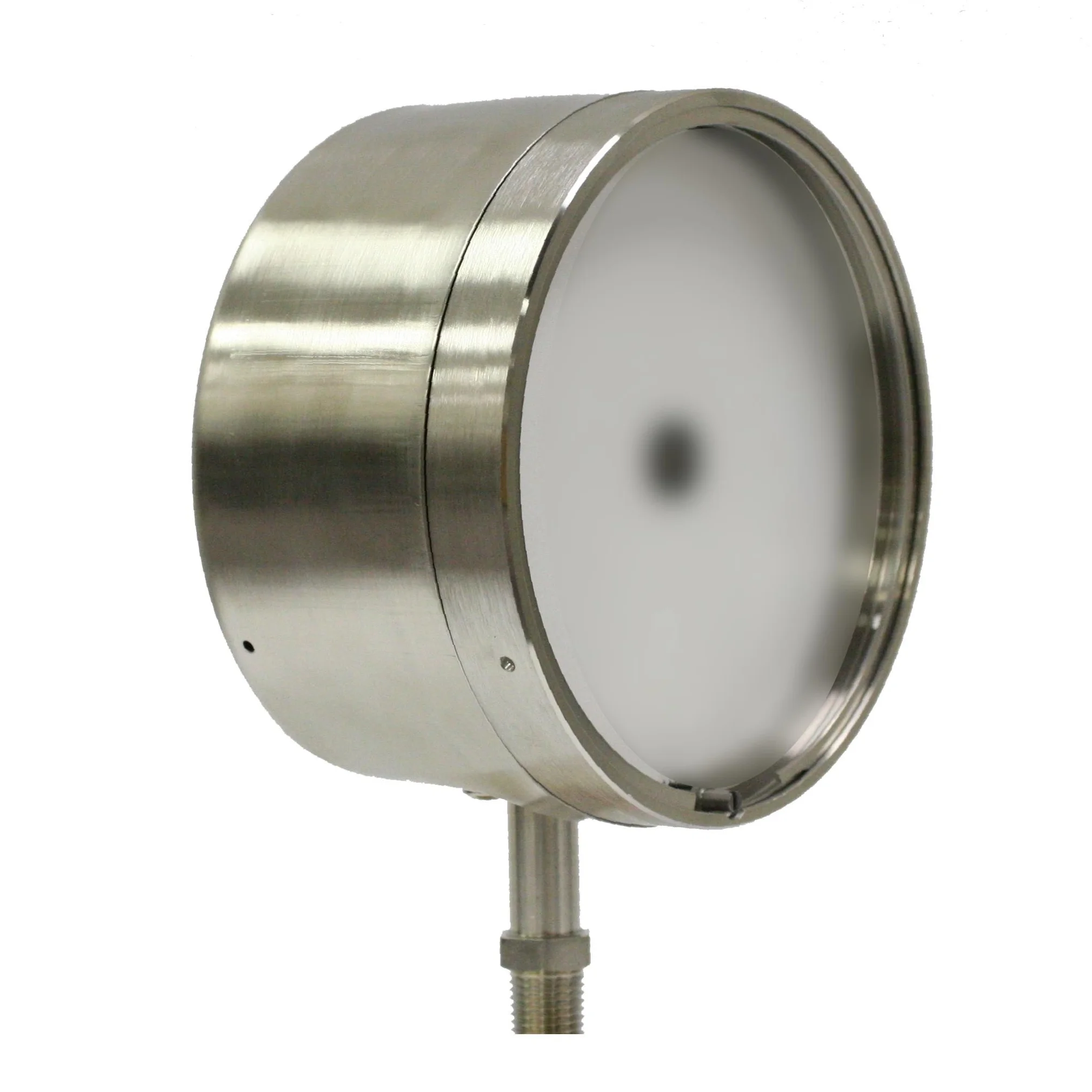

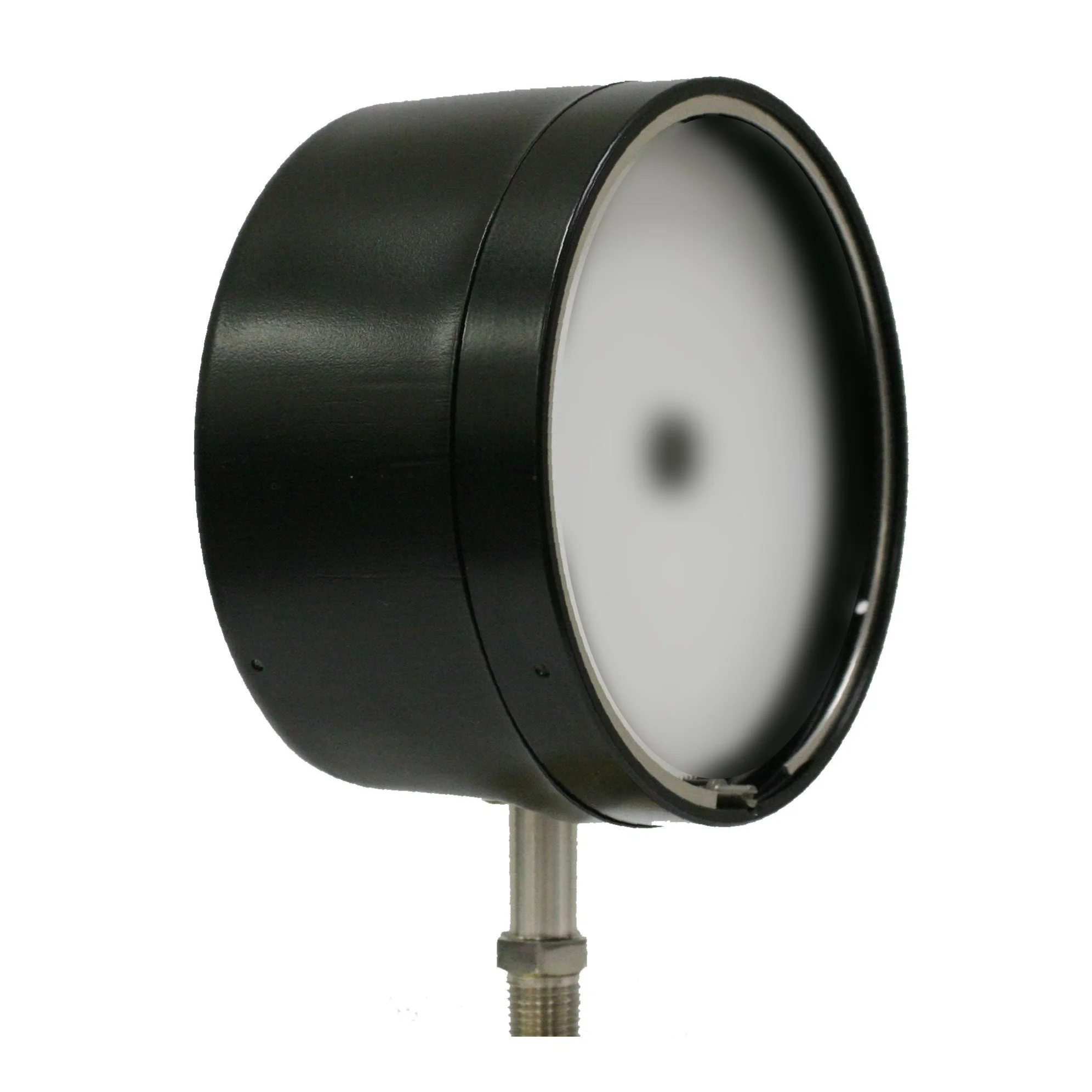

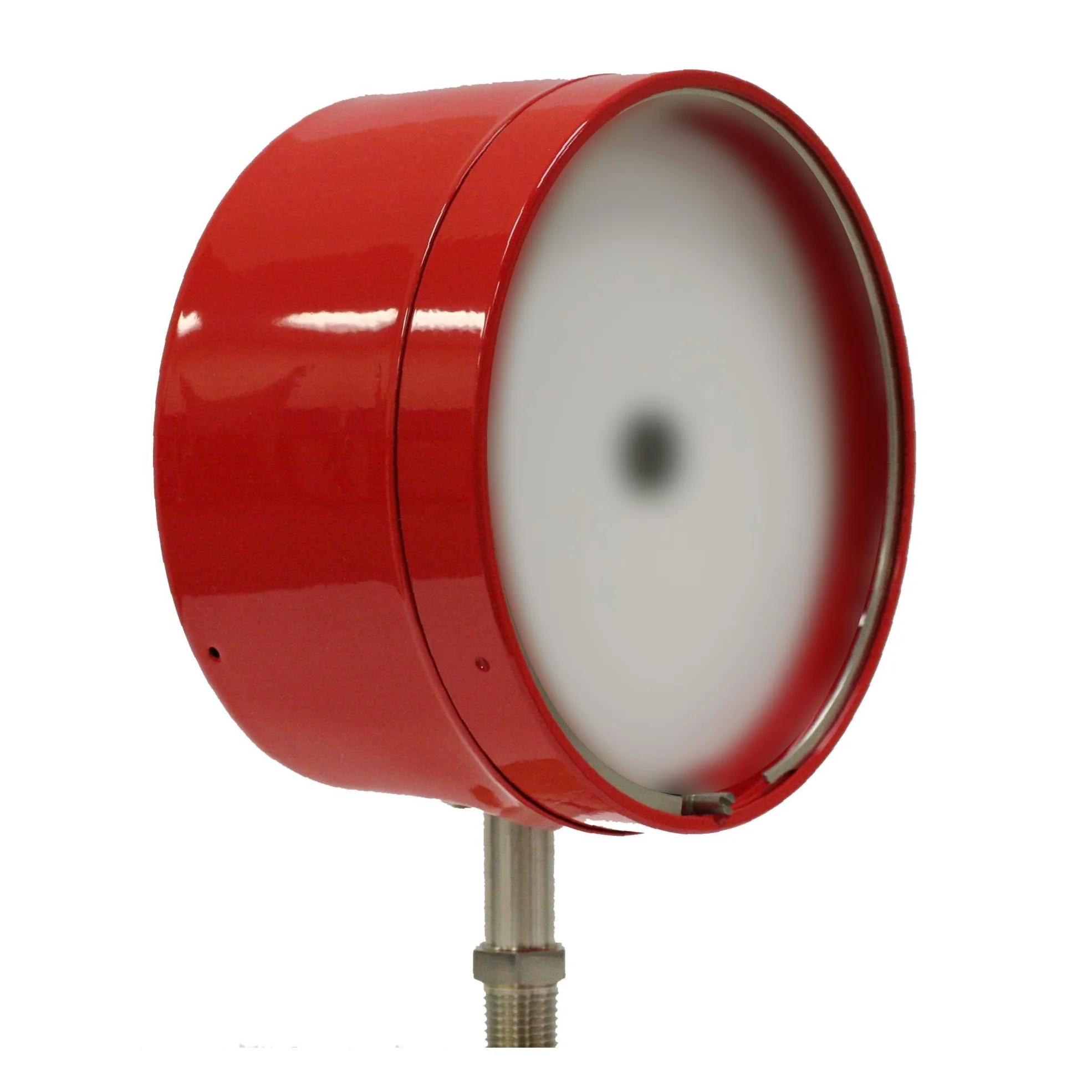

SS Case, Aluminum Ring | Code: (M)
All Stainless Steel | Code: (S)
Part No: (abcDefgghij-K)

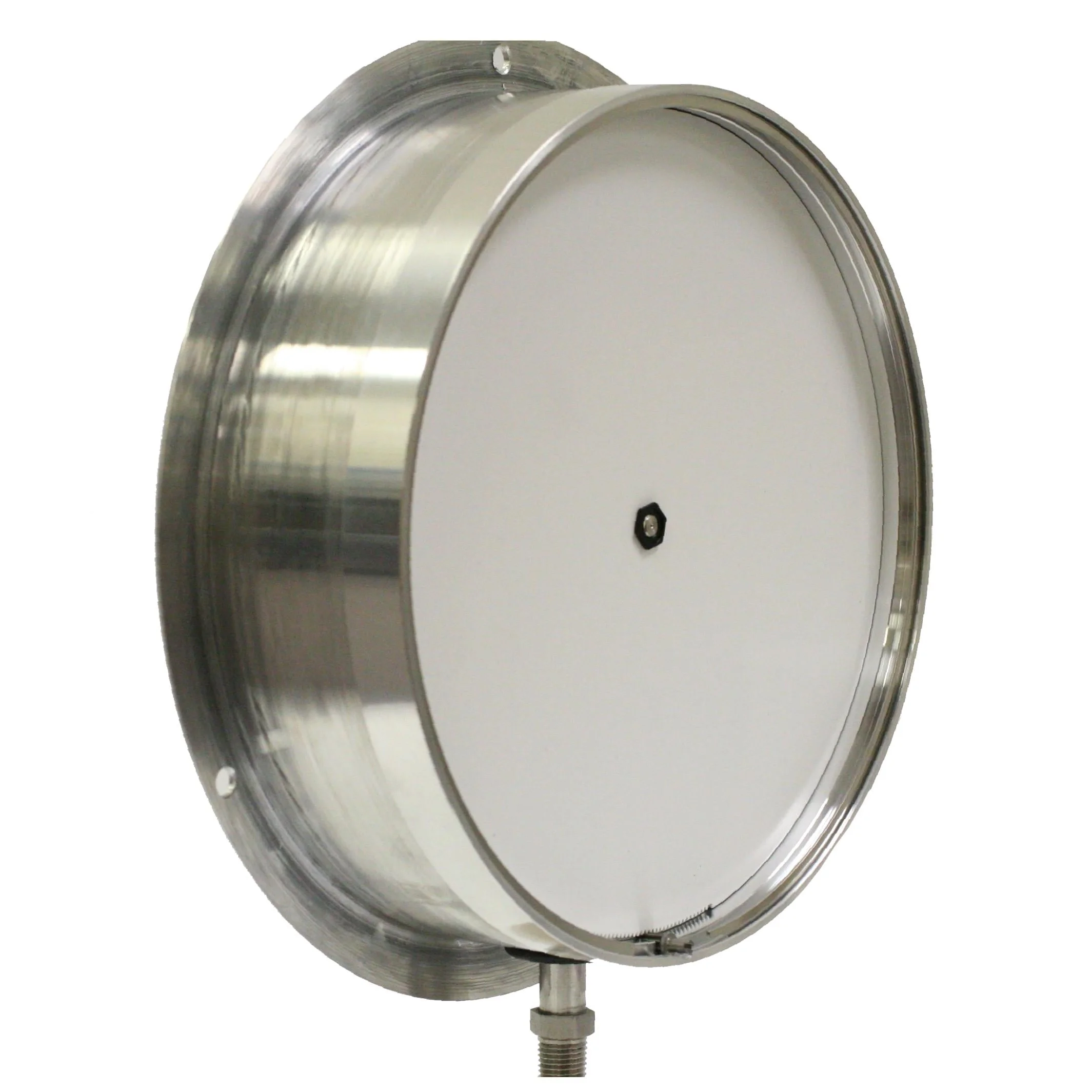

All Aluminum
Code: (N),(R) + (-Z)

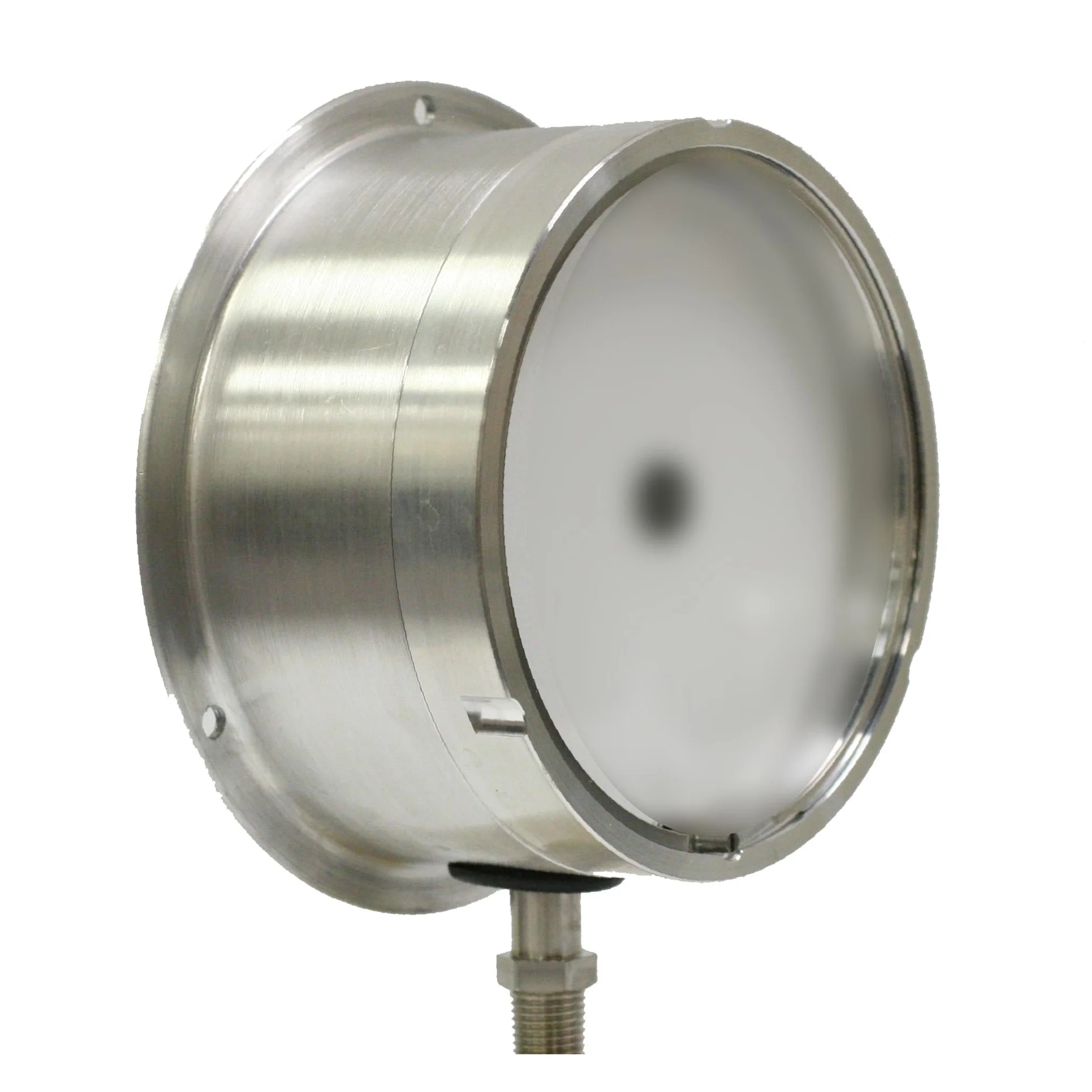

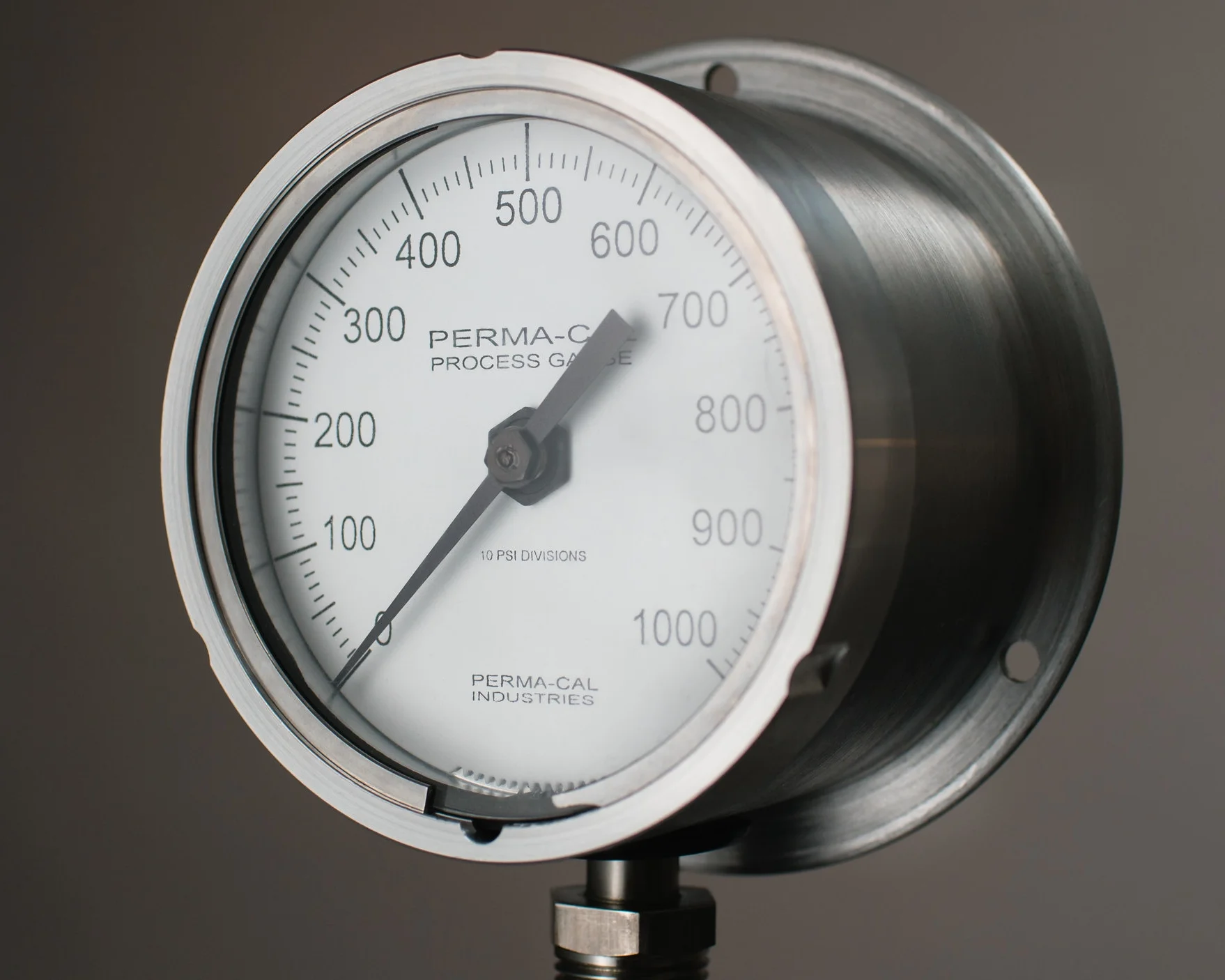

Rear Flange | Code: (R)
Aluminum Only (-Z)

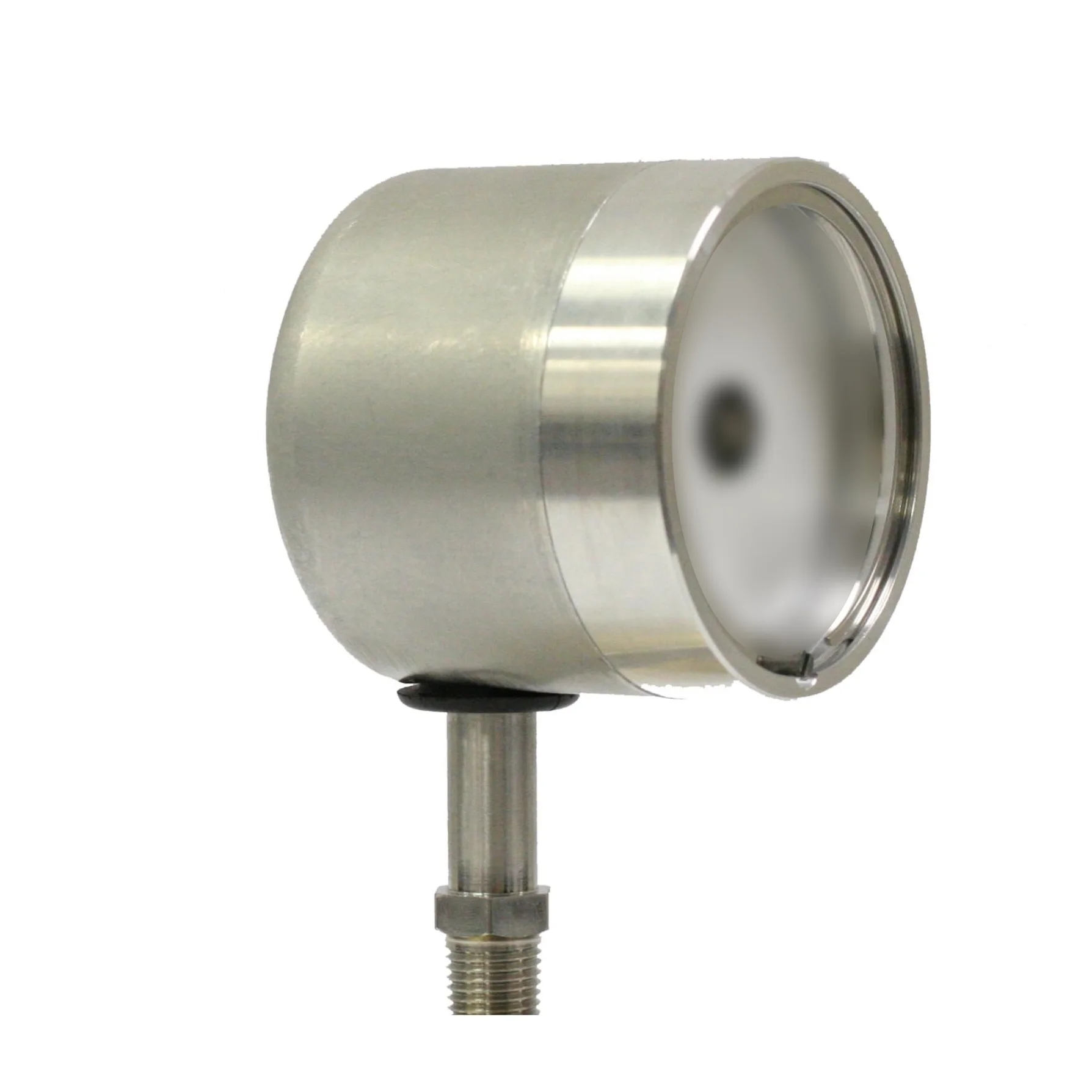

No Flange | Code: (M),(N),(S)
SS Case, Alum. Ring | All Alum. (-Z) | All SS

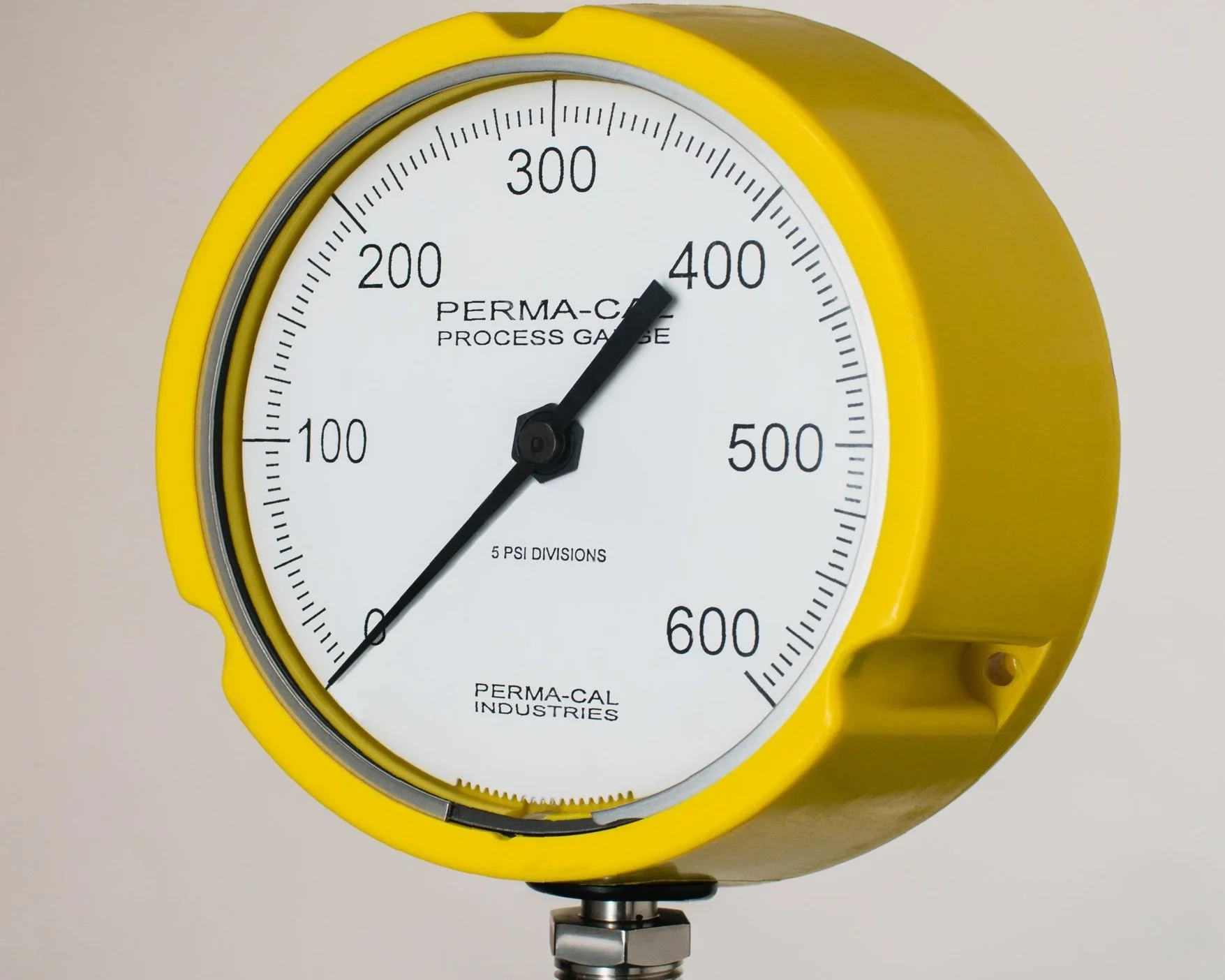

GLASS-FILLED NYLON (High-Temp Turret)
Resists chemical exposure and extreme temperatures. Add a tempered glass lens for increased temperature resistance.
Dial Size
Part No: (abCdefgghij-k)
4.5 Inch | Code: (1)
Case Color
Part No: (abcdefggHij-k)
High-Temp Yellow | Code: (H)
Operating Temperature
Media: -65°F/ -54°C to 600°F/ 315ºC
Ambient: -65°F/ -54°C to 400°F/ 204ºC
Case Type
Part No: (abcDefgghij-k)
Turret | Code: (T)
